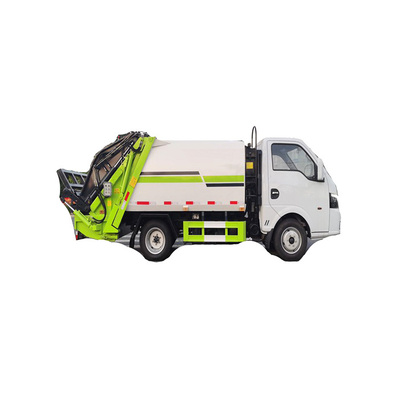

Building Material Stores Well Made Diesel Manual 3 Ton Compressed Large Capacity Garbage Truck

10 pieces
MOQ
$23,817.03(10 - 50 pieces) $22,239.75(>=51 pieces)
цена
Building Material Stores Well Made Diesel Manual 3 Ton Compressed Large Capacity Garbage Truck
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Applicable Industries: Building Material Shops, Manufacturing Plant, Farms, Construction works , Food & Beverage Shops, Advertising Company
Showroom Location: Africa Zambia
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty of core components: 1 Year
Core Components: PLC ,Take power.The gear pump ,Multi-way valve ,O
Condition: New
Drive Wheel: 4X2
Type: Compactor
Transmission Type: Manual
Emission Standard: Euro 3
Fuel Type: Diesel
Engine Capacity: 2300
Size: 5995*1850*2100
Gross Vehicle Weight: 4495
Warranty: 1 Year
Weight (KG): 4495 kg
Container type: Building Material ShopsManufacturing PlantFood
Основная информация
Оплата и доставка Условия
Packaging Details: Other
Характер продукции

Main performance description

1. The car body is made of high-strength Q345 manganese steel, which has good toughness and strong corrosion resistance. And adopts arc design, simple and beautiful, large effective volume, outstanding overall structure performance, and strong impact resistance.
2. Q355 high-strength profile is used as the movable guide rail of the garbage pushing board, which occupies a small volume, has a strong pressure capacity, and has a good anti-deformation ability. The sliding block of the push plate is made of highly wear-resistant materials and has a long service life.
3. Equipped with a large-capacity sewage tank, combined with a diversion sewage collection device,can divert the sewage that leaks between the filler and the garbage tank body due to the failure of the sealing strip to the special sewage collection tank, effectively preventing the leakage of sewage The secondary pollution caused.
4. The joint part of the filler and the box adopts adjustable hydraulic locking and full sealin technology, which has good sealing performance.
5. There are multiple safety protection measures such as the sliding board up and the scraper turning up button, the emergency stop button, the interlock switch to prevent the filler from falling, the safety brace, the self-locking function of the filler lifting cylinder, etc., to ensure the safety of personnel.
6. The intelligent control system of the controller is adopted, which can be controlled centrally in the cab. Equipped with automatic and manual dual control modes, it can control the operation of garbage trucks in the cab,both sides of the rear of the vehicle, etc., which is convenient and efficient.
7. Equipped with two-way compression function, high compression efficiency and large garbage loading capacity. When unloading, after the filler is lifted in place, a cycle is automatically realized to remove the garbage remaining in the filler.
8. Equipped with night work lights to facilitate night work for sanitation workers.
9. According to user needs, various garbage lifting devices are equipped. The well-designed lifting support provides the possibility to configure a variety of lifting devices.
10. A sealing cover is set at the opening of the optional filler. The opening and closing of the cover is pneumatically controlled, which is easy to operate and can effectively prevent the secondary pollution of garbage and odor.

【整车技术参数】 【Technical parameters of the whole vehicle】
总质量(kg)
Total mass (kg)
4495
罐体容积(m3)
Tank volume (m3)
额定质量(kg)
Rated mass (kg)
500
外形尺寸(mm)
Dimensions (mm)
5995 * 1850,1990 * 2100,2280 (mm)
整备质量(kg)
Curb weight (kg)
3865
货厢尺寸(mm)
Cargo compartment size (mm)
额定载客(人)
Rated passengers
(person)
准拖挂车总质量(kg)
Total mass of semi-trailer (kg)
驾驶室准乘人数(人)
The number of passengers in the cab (person)
2
鞍座最大载质量(kg)
Maximum load of saddle (kg)
接近角/离去角(°)
Approach angle/departure angle (°)
20/18
前悬/后悬(mm)
Front suspension/rear suspension (mm)
1190/1540
轴荷(kg)
Axle load (kg)
1650/2845
最高车速(km/h)
Maximum speed (km/h)
110
备注：
Remark:
选装后部上料机构
;仅采用2800mm轴距;该车后伸465;侧防护材料Q235,螺栓连接;后防护由车辆专用装置代替,后部装置离地350mm;ABS型号/厂家:APG3550500A/浙江亚太机电股份有限公司.选装ABS厂家及型号:襄阳东风隆诚机械有限责任公司/ABS/ASR-12V-4S/4M;该车主要由箱体,压缩机构组成,用于垃圾压缩和运输;发动机Q23-95E60对应油耗值为11.3L/100km.
Optional rear feeding mechanism; only 2800mm wheelbase is adopted; the rear extension of the car is 465; side protection material
Q235, bolted connection; rear protection is replaced by a special device for the vehicle, and the rear device is 350mm above the
ground; ABS model/manufacturer: APG3550500A/ Zhejiang Asia-Pacific Mechanical and Electrical Co., Ltd. Optional ABS manufacturer
and model: Xiangyang Dongfeng Longcheng Machinery Co., Ltd./ABS/ASR-12V-4S/4M; The car is mainly composed of a box and a
compression mechanism for garbage compression and transportation ; The corresponding fuel consumption of the engine Q23-95E60 is
11.3L/100km.
【底盘技术参数】 【Chassis technical parameters】
底盘型号 Chassis model
EQ1045SJ16DC
底盘名称 Chassis name
载货汽车底盘 Truck chassis
商标名称 Brand name
东风牌 Dongfeng
生产企业 manufacturer
东风汽车股份有限公司
Dongfeng Motor Co., Ltd.
轴数 Number of axles
2
轮胎数 Number of tires
6
轴距(mm) Wheelbase (mm)
2800,3000,3200,3400
轮胎规格
Tire specifications
185R15LT 8PR,6.00R15 10PR,6.00R15LT 10PR
钢板弹簧片数
Number of leaf spring
3/5
前轮距(mm)
Front track (mm)
1369,1387
燃料种类 Fuel type
柴油 diesel fuel
后轮距(mm)
Rear track (mm)
1242,1342
排放依据标准
Emission standard
GB17691-2018国Ⅵ
GB17691-2018 EuroⅥ
发动机型号
engine model
发动机生产企业
Engine manufacturer
发动机排量
Engine capacity
发动机功率
Engine power
Q23-95E60
安徽全柴动力股份有限公司
Anhui Quanchai Power Co., Ltd.
2300
70
车辆底盘配置
Vehicle chassis configuration
型号：
Model:
EQ1045SJ16DC
东风途逸柴油版轴距：
2800mm，1650/单排，全柴Q23-95E60（95马力），5档变速箱，185R14真空轮胎【后双轮】，前后桥1.5/3。油刹.标配动力转向，前盘制动，中控门锁，电动门窗，定速巡航，蓝牙电话，LED日间行车灯，ABS，空调，预留取力器窗口。
Dongfeng Tuyi diesel version wheelbase: 2800mm, 1650/single row, Quanchai Q23-95E60 (95 horsepower), 5-speed gearbox, 185R14
vacuum tires [rear two wheels], front and rear axles 1.5/3. Oil brake. Standard power steering, front disc brake, central control
door lock, electric doors and windows, cruise control, Bluetooth phone, LED daytime running lights, ABS, air conditioning,
reserved power take-off window.
上装箱体配置
Top loading box configuration
箱体面板材质及厚度
Box panel material and thickness
优质武钢Q345B低合金锰钢，边4mm底4mm
Quality WISCO Q345B low-alloy manganese steel, 4mm side and 4mm bottom
箱体外形
Box shape
箱体侧面装有立柱式加强筋
The side of the box is equipped with column-type stiffeners
箱体自卸设置
Box self-unloading setting
要求采用全液压控制，在驾驶室就能完成装卸垃圾的工作，并具有锁止功能。
It is required to adopt full hydraulic control, and the work of loading and unloading garbage can be completed in the cab, and it
has a locking function.
箱体内外喷涂工艺要求：户外型静电塑粉喷涂工艺
Requirements for spraying process inside and outside the box: outdoor electrostatic plastic powder spraying process
工艺性能要求
Process performance requirements
具有涂膜持久性能，其中包括耐磨擦性、抗冲击性、密着性、韧性、耐蚀性、耐化学药品、高耐候性及耐污染性等性能。
It has long-lasting properties of the coating film, including abrasion resistance, impact resistance, adhesion, toughness,
corrosion resistance, chemical resistance, high weather resistance and pollution resistance.
工艺流程要求
Process requirements
①冷轧Q345锰钢板造型。
①The shape of cold rolled Q345 manganese steel plate.
②除油处理：碱性溶液除油。
②Degreasing treatment: degreasing with alkaline solution.
③除锈蚀处理：酸性溶液除锈蚀。
③ Rust removal treatment: acid solution to remove rust.
④磷化处理：采用弱碱性磷化液进行磷化。
④ Phosphating treatment: Use weak alkaline phosphating solution for phosphating.
⑤静电塑粉喷涂。
⑤Electrostatic plastic powder spraying.
液压系统配置
Hydraulic system configuration
取力器 PTO
浙江嘉善
Jiashan, Zhejiang
齿轮泵
Gear pump
合肥长源齿轮泵
Hefei Changyuan Gear Pump
多路阀
Multi-way valve
合肥长源压缩专用电气多路阀（选装中梅阀组）
Hefei Changyuan compression special electric multi-way valve (optional Zhongmei valve group)
油缸
Cylinder
品牌聚星油缸（9支）
Brand Juxing Cylinder (9 pcs)
电控系统配置
Electronic control system configuration
PLC
德国西门子
Siemens
控制器
Controller
3只：驾驶室一只，后填装器左右各一只
3 pieces: one in the cab, one on the left and right of the rear loader

Hubei Huilong Special Purpose Vehicle Co.

Hubei Huilong Special Purpose Vehicle Co., Ltd. was established in 2011, is a special purpose vehicle manufacturer. The factory is located in the special vehicle industry cluster in Suizhou, Hubei, China. Hubei Huilong has the strength of independent research and development, production and sales as a whole. Our main products are semi-trailer series, compressed garbage truck series, sweeper series, aluminum alloy transporter series. Our crawler semi-trailer has more than 40 patents and is the key support object of the 13th Five-Year Plan for economic and social development, and the company aims to develop towards specialization, precision, speciality and newness. With the advantages of market research and product innovation, we develop new products every year to meet the real customer needs. The factory has four digital workshops equipped with modern machinery and equipment, including raw material processing workshop, automatic aluminum can body workshop, assembly workshop and painting workshop. Three production lines and 100 sets of special equipment ensure stable and reliable production.
1. Q:Are you a company or a trading company? A:Hubei Huilong special purpose vehicle Co., Ltd. is one of the largest special purpose vehicle manufacturers in China. 2.Q:Where is your factory? A:Our company is located in Suizhou, Hubei, China. 3.Q:How can I get there?   A:We welcome you to visit the factory for inspection. You can go to Tianhe Airport by plane or take high-speed rail to Suizhou Station directly.    4.Q:What are your terms of payment? A: T/T 5.Q:Will you arrange the shipment of the vehicles? A:  Yes, we will arrange shipment according to the trade terms. 6.Q:What is the lead time?   A:20-25 working days.  For other questions, we will reply to you as soon as possible after receiving your email!
