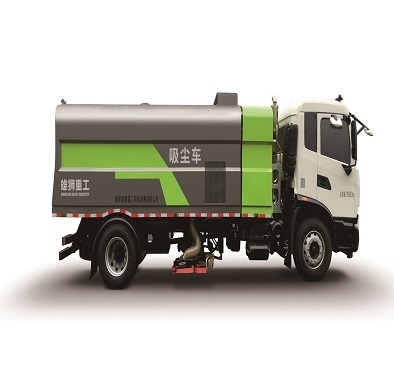

Sewage disposal Dongfeng new product China vacuum sweeper trucks factory sales XSZ5180TXCDFE6

1 unit
MOQ
$89,300.00(1 - 4 units) $83,100.00(5 - 9 units) $80,000.00(>=10 units)
цена
Sewage disposal Dongfeng new product China vacuum sweeper trucks factory sales XSZ5180TXCDFE6
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Transmission Type: Manual
Condition: New
Emission Standard: Euro 6
Fuel Type: Diesel
车身尺寸: 8530*2500*3090mm
Horsepower: 150 - 250hp
Gross Vehicle Weight: 15-20T
After-sales Service Provided: Online support, Online Support
Capacity (Load): 1-10T
Drive type: LHD RHD
Color: Customer's Requirement
Product name: Vacuum Sweeper Truck
Chassis Optional: Dongfeng
Drive wheel: 4X2 6x4 4x4 6x2 8x4
Tank Material: Carbon Steel
Use: Sewage Disposal
Tank capacity: 8m³
Water tank volume: 2m³
Основная информация
Оплата и доставка Условия
Packaging Details: Wax before export
Supply Ability: 1 Unit/Units per Week
Характер продукции
Product Overview

Dongfeng New Product China Vacuum Sweeper Trucks Factory Sales XSZ5180TXCDFE6

Product Characteristic:
1. Use auxiliary engine to drive fan and other working devices, use the working principle of vacuum dust extraction, suction and sweep combination, dry dust removal, full filter air discharge to clean the road surface, electric, liquid, gas and manual control mode, hydraulic lifting sweep plate and dump unloading.
2. Automatic pulse cleaning function, the auxiliary machine with pumping pump and volume air tank, when reaching a certain air pressure, open the pulse backblowing device, backblowing vibration of the box filter barrel, so that the filter barrel is not easy to block, effectively improve the suction, so as to achieve better cleaning effect.
3 computer PLC control, adjustable pulse interval time. Manual button-down hydraulic system of cab drives the lifting of main sucker, the driving of left and right auxiliary sucker, pulse cleaning function, the opening and closing of the back door of dustbin, dustbin tilt reset and other mechanical actions.
4. The hydraulic pipeline adopts the sealing structure form of German standard technology, which has good anti-vibration
performance and high sealing reliability, and can achieve the sealing effect without leakage.
5. High quality solenoid valve set, key electronic control components using imported electrical switch, high reliability, long
service life.
6. Hydraulic components adopt integrated superposition design, electro-hydraulic centralized control of cab, easy to operate.
7. Equipped with manual pump emergency system, it can lift the dustbin even when the auxiliary engine stops, which is convenient for maintenance.
8. The rotation between the auxiliary engine and the fan is provided with a pneumatic controlled automobile clutch device. The device can ensure the automatic separation of the fan from the auxiliary engine when the auxiliary engine is stopped, simplify the operation, and improve the reliability and service life of the auxiliary engine.
9. Dustbin corrosion resistance, large volume, no skeleton, continuous cleaning operation for a long time, easy to dump garbage, easy to clean.
10. Left and right independent or linkage work design, ensure that in the use of the vehicle skills independent right sweep or do sweep, so that the working mechanism near the fast lane side does not extend out of the car body, reduce road occupation, and can sweep left and right at the same time to improve the cleaning width.
11. The rise and fall of the dustbin can be separately controlled by the main and auxiliary engines. The rise and fall of the
dustbin, suction nozzle and sweep device can also be controlled by manual operation of the electric button at the rear of the vehicle, which is convenient for maintenance.
12. Fully floating suction nozzle, can be levelled automatically with the ground condition, large cleaning capacity, cleaning
speed.
PRODUCT SPECIFICATIONS
No
Item
Data
Item
Data
1
Dimensions(mm)
8530*2500*3090
Approach Angle/Departure Angle
17°/15°
2
Chassis Engine Power
169KW
Tank Capacity
8m³
3
Gross Mass(KG)
18000
Water Tank Volume
2m³
4
Unladen Mass(KG)
11080
Cleaning Width(mm)
3500
5
Rated Contained Mass(KG)
6725
Cleaning Capacity
87500m²/h
6
Wheelbase(mm)
5300
Max Suction Particle Size(mm)
110
7
Max Speed(km/h)
89
Cleaning Efficiency
≥96%
8
Working Speed(km/h)
3-20
Cleaning Speed(km/h)
3.5-15
9
Min Diameter Of Turning Circle
18m
Max Unloading Angle Of Dustbin
≥45°
10
Overhang F/R(mm)
1400/1830
SIMILAR PRODUCTS
Why Choose Us
We are professional manufacturer of special trucks,provide different kinds of Vacuum Sweeper Trucks, customized as customer's requirements.
(1). Capacity: option 3-25 m³ Vacuum Sweeper Trucks.
(2). Steering wheel: both left and right hand drive,meet the needs of different countries.
(3). Emission standard: option Euro 1,Euro 2,Euro 3,Euro 4,Euro 5,Euro 6 Vacuum Sweeper Trucks.
(4). Truck chassis: option japan and china brand.

Customize Vacuum Sweeper Trucks,please contact Zoe's WeChat and WhatsApp: 0086-18790149285.
